Wire Cable and Tubing Cutters

Designed to accommodate a wide variety of application types, our complete line of rotary or die blades, fiberglass or wire brush wheels, thermal, or chemical strippers features more than 40 products.

Automatic Wire Cutting Machines

Eraser manufactures an array of industrial-grade wire cutters that are suitable for cutting a wide range of materials. Designed to fit your specific application, material, and budget, Eraser wire cutting machines are available in automatic and semi-automatic, air-operated, bench, and portable. Some machines incorporate a guillotine style blade to provide clean, square cutting of a variety of different wire sizes and configurations.

Automatic Tube Cutting Machines

Eraser tube cutting machines cut a wide range of materials such as flexible polyurethane, flexible PVC, nylon reinforced hose, copper, aluminum, steel, tygon, radiator hose, polyurethane, silicone, polyethylene, rubber, vinyl and more. Designed to fit your specific application, Eraser's tube cutters are available in automatic or semi-automatic, and may be air-operated, bench-mounted, or portable. Some machines incorporate a belt-feed and rotary cutter system to ensure there is no crushing of material, either along its length or on the cut ends.

Automatic Cable Cutting Machines

The Eraser array of automatic cable cutters, as well as bench, semi-automatic, and portable cable cutting machines are suitable for cutting a wide range of materials. Some of the cable cutting machines incorporate a guillotine style blade to provide clean, square cutting of a variety of different cable sizes and configurations.

All Wire, Cable, and Tubing Cutters

MMC71 Multi-Material Cutter

MMC71-e1448312301433.jpg Part Number: AR0071
Model MMC71 Multi-Material Cutter is capable of cutting a wide range of materials, including flat material up to 3.3” inches wide, tubing up to 3/16” OD, and wire up to 14 AWG stranded or 16 AWG solid.  The MMC71 works great on flat material such as heat shrink tubing, tapes, foils, ribbon cable and more, and is even capable of cutting silicone tubing.  The machine is easily programmable, offering ten fixed feed rates, ten fixed cut rates, and storage for up to 99 batches and 10 kits (depending on available memory).  Material guides are easily adjustable for each application.  Additional guide kits are available to allow multiple pieces of the same material to be cut at the same time, increasing operator efficiency and production rate.  The unit is fully electric and does not require an air supply.

HCA20 Wire and Cable Cutter

1387.jpg Part Number: AR0291
Eraser’s Model HCA20 Wire & Cable Cutter is an ideal unit to quickly shear wire, cable or tubing up to 1.25″ (31.75mmø) in diameter. The unit utilizes dual electrical finger switches to activate the blade via an air cylinder. Model HCA20 incorporates a guillotine style blade to provide clean, square cutting of a variety of different material sizes and configurations.

RTC1 Rigid Tube Cutter

1315.jpg Part Number: AR1411
Model RTC1 Manual Feed Rigid Tube Cutting Machine is capable of processing copper, aluminum and mild steel. Model RTC1 has an unlimited cut length, is easy to use and offers production flexibility. This is the perfect tool for rigid tube cutting!

FTC1 Flexible Tube Cutter

1382.jpg Part Number: AR1421
Model FTC1 Manual Feed Flexible Tubing Cutter cuts material from 1 1/8″ to 1/4″ (28.6mm to 6.4mm). The unit is capable of processing a wide range of material types including tygon, radiator hose, flexible PVC, polyurethane, silicone, nylon, PTFE, FEP, PFA, polyethylene, polypropylene, rubber, vinyl and polystyrene. The FTC1 has an unlimited cut length, is easy to use and offers production flexibility. The perfect tool for flexible tube cutting!

LFTC1 Large Flexible Tubing Cutter

1420.jpg Part Number: AR1431
Model LFTC1 Manual Feed Large Flexible Tubing Cutter cuts material from 2” to 1/2″ (50.8mm to 12.7mm). The unit is capable of processing a wide range of material types including tygon, radiator hose, flexible PVC, polyurethane, silicone, nylon,PTFE, FEP, PFA, polyethylene, polypropylene, rubber, vinyl and polystyrene. Model LFTC1 has an unlimited cut length, is easy to use and offers production flexibility. The perfect tool for large flexible tube cutting!

M700C Modular Series Controller

M700C-Left.jpg Part Number: AR3300

The M700C (Control) Module is auto sensing and operates over the input power range of 100 – 240 VAC at 50/60Hz. While the feeder module (M700F) is optional, you will need to purchase one or more cutter modules (M700TW, M700ST, M700LT).

Use the M700C with the following Modules;

The M700F Feeder Module feeds material to precise lengths for cutting with other modules or can be used alone to feed compatible systems.

The M700TW Tube and Wire Cutter Module uses a pneumatic guillotine style cutter head to cut copper wire gauges up to 10 AWG stranded or 12 AWG solid and cut tubing up to 3/8” (9.5mm) OD.

The M700ST Small Tube Cutter Module utilizes Eraser’s rotary style cutter head that can cut many grades of tubing up to 1/2” (12.7mm) OD.

The M700LT Large Tube Cutter Module is a larger version of the rotary style cutter head that can cut tubing from 1/2” to 1-1/8” (12.7mm to 28.6mm) OD.

The M700HW Hard Wire Cutter Module utilizes a pneumatic-powered, dual-blade, semi-rotary style cutter which can cut various sizes of hard alloy wire.

The M700 Series is CE marked and RoHS compliant.

WS1 Wire Straightener

1378.jpg Part Number: AR3950
Note: IR8207 Adjustable Bench Mounting Stand (shown) is optional. A versatile wire straightening device for pre-straightening wire before cutting operations.

HC10 Hand Operated Wire and Cable Cutter

250.jpg Part Number: AR5700
The HC10 is an ideal unit to quickly shear wire and cable of up to 1.00″ (25.4mmø) in diameter depending on material construction. The HC10 is hand operated, and wire and cables are cut by use of a lever. Incorporates a guillotine style blade to provide clean, square cutting of a variety of different wire and cable sizes and configurations.

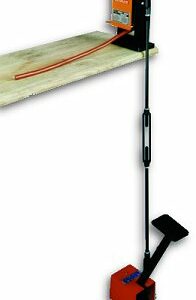

FC10 Foot Operated Cable Cutter

257.jpg Part Number: AR5800
The FC10 is an ideal unit to quickly shear wire and cable of up to 1.00″ (25.4mmø) in diameter depending on material construction. The FC10 utilizes a foot pedal operation to accomplish the cutter. Incorporates a guillotine style blade to provide clean, square cutting of a variety of different wire and cable sizes and configurations.

WC601A Wire and Tubing Cutter

1618.jpg Part Number: AR7121
The WC601A is the ultimate automatic wire and flexible tubing cutter. The unit easily and accurately cuts wire, tubings, sleevings, etc. to the programmed length and number of pieces. Ten variable feed rates allow the operator the flexibility to choose the correct rate for a given material to optimize production rate, repeatability and accuracy of the cut length. The WC601A utilizes an adjustable self-centering dual driven belt feed, coupled with an air-actuated cut-off blade. Programming of the unit is simple. A batching feature allows all variables for frequently run jobs to be pre-programmed. Up to 99 batches may be programmed. A kitting feature allows for multiple pieces of different lengths to be cut within a batch. Up to 10 kits can be programmed.

WC601B Rotary Blade Tubing Cutter

WC601B-2-e1405686738695.jpg Part Number: AR7131
Eraser’s Model WC601B Rotary Blade Tubing Cutter is the ultimate automatic flexible tubing cutter. The unit easily and accurately cuts to length tubing, sleeving and more to the programmed length and number of pieces. Ten feed rates allow the operator to choose the correct rate for a given material to optimize production rate, repeatability, and accuracy of the cut length. The unit is perfect for processing flexible tubing to tight specifications, such as those required for medical tubing.Using a unique combination of an adjustable dual driven belt feed and a rotary cutting head, coupled with a reliable stepper drive system, it achieves results formerly only possible by hand operation. The belt feed and rotary cutter ensures there is no crushing of material, either along its length or on the cut ends. Programming of the unit is simple; a batching feature allows all parameters for frequently run jobs to be pre-programmed. A kitting feature allows for multiple pieces of different lengths to be cut. Quantities of 99 batches and 10 kits may be programmed.

WC601D Rotary Blade Tubing Cutter

823.jpg Part Number: AR7151
Eraser’s fully automated Model WC601D Rotary Blade Tubing Cutter is perfect for processing flexible tubing to tight specifications such as those required for medical applications. Model WC601D is capable of processing materials such as flexible polyurethane, flexible PVC, nylon reinforced hose and rubber hose to the programmed length and number of pieces. The belt feed and rotary cutter ensure there is no crushing of material, either along its length or on the cut ends. To optimize production rate, repeatability and accuracy of the cut length, Model WC601D has ten feed rates which allow the operator to choose the correct rate for a given material. Using a unique combination of an adjustable dual driven belt feed and a rotary cutting head, coupled with a reliable stepper drive system, the WC601D achieves results formerly only possible by hand operation. Programming of the unit is simple. A batching feature allows all parameters for frequently run jobs to be pre-programmed. Up to 99 batches may be programmed. A kit feature allows a collection (or set) of batches to be run sequentially.

CS800 Wire Cut & Strip 120V

1226.jpg Part Number: AR7201
Eraser’s Model CS800 Wire Cut & Strip is a fully programmable, fully electric bench top wire cutter and stripper. The unit can process wire from 10AWG – 30AWG and can quickly and precisely cut and partial strip 6,150 pieces per hour at 2.5” lengths (6.35 cmø), and 5,700 pieces per hour at 4’’ lengths (10.2 cmø). With programmable batching and ten variable feed rates, the CS800 is the perfect production tool for complete automation.

WC302 Automatic Wire & Tubing Cutter

1650.jpg Part Number: AR7211
Eraser’s Model WC302 Automatic Wire & Tubing Cutter is an automatic wire and flexible tubing cutter that easily and accurately cuts wire, tubing, sleevings and more to the programmed length and number of pieces. Nine variable feed rates allow the operator the flexibility to choose the correct rate for a given material to optimize production rate, repeatability and accuracy of cut length. Programming of the WC302 is simple. A batching feature allows all variables for frequently run jobs to be pre-programmed. Up to 99 batches may be programmed.

MR30A Hand-Held Air-Operated Cutter

1683.jpg Part Number: DE0009
This hand-held air-operated cutter uses 85 PSI and creates 617 lbs. of cutting force. It cuts .130″ OD copper, .110″ OD steel and .047″ OD piano wire with diagonal, clipper or end type cuts depending on die. Diagonal carbide blades are also available. The tool is 7″ long and 2 13/64″ diameter. It weighs 1.2 lbs. and requires 1/4″ NPT air connection.
