Replacement Parts

640 Fine FybRglass® Cone Wheels (Pair)

conewheels_web.jpg Part Number: AE0281
The 640 Fine Cone FybRglass® Wheels come in a pair and they are used for 35-48 AWG wire. All of our FybRglass® Stripping Wheels are manufactured in house to ensure the highest standards of quality and delivery. We make stripping wheels to fit all competitive machines as well as for all Eraser Models. We can also manufacture custom size wheels. There are many factors that determine the proper grade of FybRglass® wheel for a specific wire stripping application. These include wire size, type of insulation, strip length and number of wires stripped at one time. For this reason, we suggest you give us a call, to determine the proper grade for your application.

Wheel Dresser

189.jpg Part Number: AR2701
Wheel dresser and handle for twin wheel strippers with wheels over 1″ (25mm) wide. For use with D1, DV1 and D9.

Wheel Dresser Refill

191.jpg Part Number: AR2702
Packet of 10 wheel dresser refills for use with wheel dresser for twin wheel strippers with wheels over 1″ (25mm) wide.

Wheel Dresser

637.jpg Part Number: AR2901
Wheel dresser for twin wheel strippers with wheels under 1″ (25mm) wide. For use with R1S, RT2, RT2S, ST1.

Wheel Dresser Refills

194.jpg Part Number: AR3020
Packet of 10 wheel dresser refills for use with wheel dresser for twin wheel strippers with wheels under 1″ (25mm) wide. For use with AR2901

Dip Strip

301.jpg Part Number: BR1301
Two pound (908g) bag of Dip Strip. Dip Strip is used to chemically remove the insulation from virtually all magnet and enamel wires of all sizes and insulation types, without damage to the wire. When heated in the specially designed stripping pot, Dip Strip melts and wires are immersed in the molten Dip Strip to strip the insulation. Note: Contact Eraser’s Customer Service Department for shipping information.

Dip Strip

301.jpg Part Number: BR1302
One pound (454g) bag of Dip Strip. Dip Strip is used to chemically remove the insulation from virtually all magnet and enamel wires of all sizes and insulation types, without damage to the wire. When heated in the specially designed stripping pot, Dip Strip melts and wires are immersed in the molten Dip Strip to strip the insulation. Note: Contact Eraser’s Customer Service Department for shipping information.

Dip Strip

1586.jpg Part Number: BR1305
Fifty pound (22.6kg) container of Dip Strip. Dip Strip is used to chemically remove the insulation from virtually all magnet and enamel wires of all sizes and insulation types, without damage to the wire. When heated in the specially designed stripping pot, Dip Strip melts and wires are immersed in the molten Dip Strip to strip the insulation.

Dip Clean 2 Metal Cleaner

1623.jpg Part Number: BR1440
(1) U.S. pint of Dip Clean 2 Metal Cleaner. For use with DSP and USP Stripping Pots and Dip Strip. After stripping using Dip Strip, the stripped wires are then rinsed in water and Dip Clean 2 Metal Cleaner to remove oxides and stripping residue.

Dip Clean 2 Metal Cleaner

652.jpg Part Number: BR1441
(1) U.S. gallon of Dip Clean 2 Metal Cleaner. For use with DSP and USP Stripping Pots and Dip Strip. After stripping using Dip Strip, the stripped wires are then rinsed in water and Dip Clean 2 Metal Cleaner to remove oxides and stripping residue.

Sealed Beam

699.jpg Part Number: CK0012
These lamps provide all the advantages of conventional T3 quartz infrared lamps and more without the problems. The cold zones at each end of the lamp provide for easy mounting using simple clips or springs. The elimination of the need for bulky modules permits use in confined areas. The internal polished stainless steel reflector never needs cleaning and is protected from dirt and dust. The reflector will not oxidize as it is enveloped in inert gas. All electrical connections are made at one end of the lamp, reducing installation and maintenance costs. Access to the heating chamber is not necessary to service the lamps. Two quartz envelopes are utilized, providing excellent thermal, mechanical, and impact shock resistance. These are the ideal maintenance-free lamps for multiple heating applications. They may be used in many confined areas not suited to conventional T3 lamps.

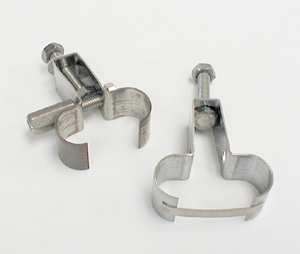

Mounting Clips

1237.jpg Part Number: CK1001
One pair of holding/mounting clips for use with infrared sealed beams.

Nose Cone

896.jpg Part Number: CL0018
Replacement Nose Cone for use with all DCF units except DCFV, DCFA, DCFB.

Blade Guard

1570.jpg Part Number: CL0024
Replacement Blade Guard for use with all DCF units except DCFV, DCFA, DCFB, DCFR.

JCSBL Replacement Blade

1125.JPG Part Number: CL0105
Replacement blade for DE0016, DE0027, DE0028, DE0035 and DE0050 JCS Series Cable Slitter.

Blade

694.jpg Part Number: CL0149
Cutting blade for center cuts for use with MR30A (DE0009) portable air operated cutter. Blade cuts 0.130″ OD copper, 0.110″ OD mild steel and .047″ OD piano wire.
