DCFX1 Wire Stripper for Magnet and Enamel Wire

Description / Details

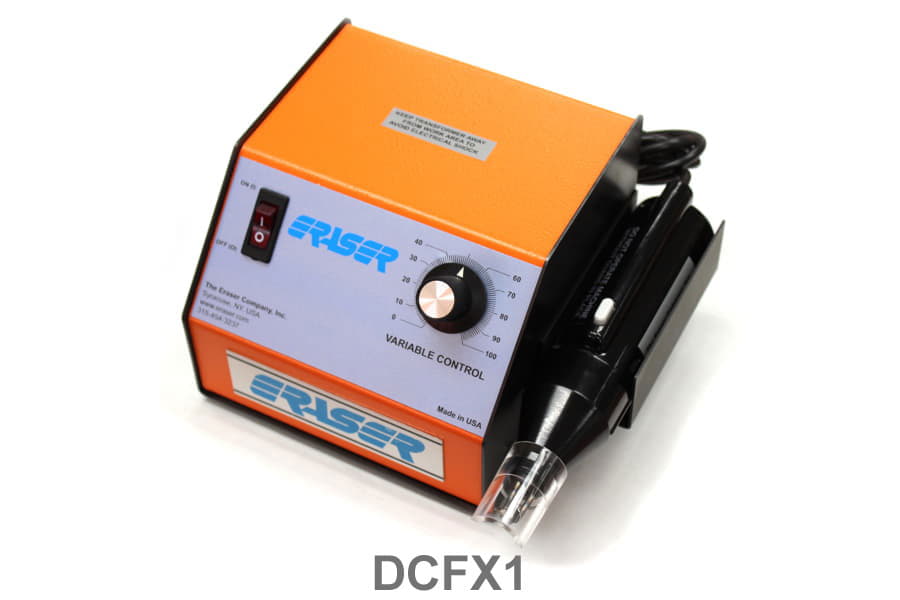

DCFX1 Wire Stripper – Precision Insulation Removal

The DCFX1 is designed to efficiently remove round magnet and enamel wires, along with any type of insulation film including Formvar, nylon, polythermaleze, and varnish.

Key Features:

Wire Sizes: 34 to 23 AWG (0.16 to 0.57 mmø)
Drilled Handpiece: This model features a drilled armature allowing you to strip wire through the tool – ideal for use with coil winding machines or creating intermittent stripping.
Strip Length: 0.06″ to infinite length with the drilled-though handpiece armature.
Precise Control: A variable speed power unit and bench holder provide precise control over the blade contact, ensuring clean insulation removal without damaging the wire conductor.
Versatile Applications: Ideal for production lines, repairs, and a wide range of applications – including armatures, coils, chokes, transformers, relays, solenoids, and more.
Simple Operation: To strip a wire, insert it between the blades, press the start button on the handpiece, and gently pull the wire out. Typically, one speed setting is sufficient for most wires; adjust the control knob only when switching between very large and small wires.
Self-Adjusting Design: The self-adjusting feature makes these strippers perfect for stripping coils and transformers with multiple lead wires of varying sizes.
Consistent Results: An adjustable strip length stop ensures consistent insulation lengths, crucial for critical applications.
Wide Compatibility: These strippers work effectively on both copper and aluminum wires.

Foot Switch Option: The optional Footswitch Kit transforms all DCFX models into bench-mounted machines, offering increased convenience and control.

Item Details

Model: DCFX1
Part Number: AR4010

Use this part in place of the following:

AR4501 – DCF1
AR4500 – DCF1 Drilled

Series Information

The DCFX Series from The Eraser Company includes a range of wire strippers and a twister.

Models DCFX1, DCFX3, and DCFX5 use centrifugal force to cleanly remove the insulation from round magnet and enamel wire. These units strip a range of wire sizes from 34 to 6 AWG (0.16 to 4.12 mmø). Models DCFX1 and DCFX3 are available in a drilled through version for infinite strip lengths. (See Technical Specifications for details on each model.)

The DCFXT uses a twisting head with three fingers to neatly twist together the ends of pre-stripped stranded wires.

The power unit allows for variable speed control, and a switch supports usage in both 115 and 220V AC.

An optional Footswitch Kit enables all models to be used as bench machines.

Specifications

MODEL	DCFX1	DCFX3	DCFX5
Handpiece	Drilled	Drilled	Undrilled
Wire Size	34 to 23 AWG 0.16 to 0.57 mmø	25 to 14 AWG 0.45 to 1.63 mmø	16 to 6 AWG 1.29 to 4.12 mmø
Strip Length w/ Length Stop	1/8" to 1-1/2" 3.2 to 38.1 mm	1/8" to 1-1/2" 3.2 to 38.1 mm	3/32" to 1-3/8" 2.4 to 34.9 mm
Strip Length w/o Length Stop	0.06" to Infinite 1.5 mm to Infinite	-- 25-16 AWG -- 0.06" to Infinite 1.5 mm to Infinite -- 15-14 AWG -- 1/8" to 1-1/2" 3.2 to 38.1 mm	N/A (Length Stop not removable)

ALL DCFX HANDPIECES AND TRANSFORMERS

MODEL	HANDPIECE	TRANSFORMER
Size	7-3/8" L × 1-5/8" Ø 187 × 41 mmø	6" L × 5-3/4" W × 4-1/2" H 152 L × 146 W × 114 H mm
Weight	1.00 lbs 0.45 kg	5.50 lbs 2.50 kg
Power	Low Voltage DC	115 or 230 V AC @ 50/60 Hz Variable Low Voltage DC (output)
Decibel Rating	72 dB(A)
