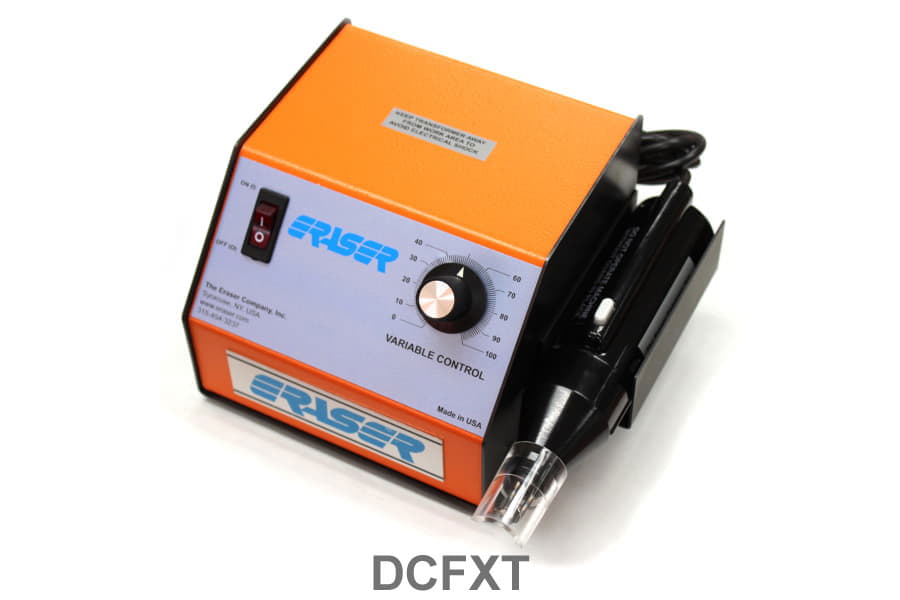

DCFXT Wire Twister

Description / Details

The DCFXT wire twister is used for neatly twisting together the ends of pre-stripped stranded wires. The optional Footswitch Kit enables the DCFXT to be used as bench mounted machine.

Item Details

Model: DCFXT
Part Number: AR4060

Use this part in place of the following:

AR4601 – DCFT

Series Information

The DCFX Series from The Eraser Company includes a range of wire strippers and a twister.

Models DCFX1, DCFX3, and DCFX5 use centrifugal force to cleanly remove the insulation from round magnet and enamel wire. These units strip a range of wire sizes from 34 to 6 AWG (0.16 to 4.12 mmø). Models DCFX1 and DCFX3 are available in a drilled through version for infinite strip lengths. (See Technical Specifications for details on each model.)

The DCFXT uses a twisting head with three fingers to neatly twist together the ends of pre-stripped stranded wires.

The power unit allows for variable speed control, and a switch supports usage in both 115 and 220V AC.

An optional Footswitch Kit enables all models to be used as bench machines.

Specifications

MODEL	DCFXT
Handpiece	Undrilled
Wire Size*	Up to 12 AWG Up to 2.05 mmø
Twist Length* ^#	Up to 2-1/2" Up to 63.5 mm
* Material Dependent ^# No Length Stop supplied/required

ALL DCFX HANDPIECES AND TRANSFORMERS

MODEL	HANDPIECE	TRANSFORMER
Size	7-3/8" L × 1-5/8" Ø 187 × 41 mmø	6" L × 5-3/4" W × 4-1/2" H 152 L × 146 W × 114 H mm
Weight	1.00 lbs 0.45 kg	5.50 lbs 2.50 kg
Power	Low Voltage DC	115 or 230 V AC @ 50/60 Hz Variable Low Voltage DC (output)
Decibel Rating	72 dB(A)
