M700HW Modular Series Hard Wire Cutter Unit

Products » M700 Modular Series » M700HW Modular Series Hard Wire Cutter Unit

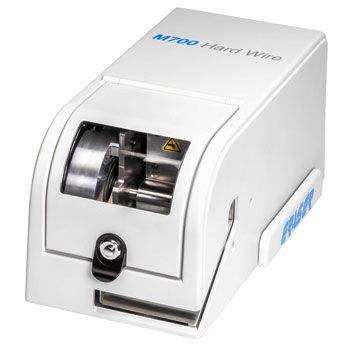

M700HW Modular Series Hard Wire Cutter Unit

Model
M700HW

Part Number
AR3800

SHARE THIS ON SOCIAL MEDIA

Description / Details

The M700 Hard Wire Module (M700HW) utilizes a pneumatic-powered, dual-blade, semi-rotary style cutter which can cut various sizes of hard alloy wire, including Nitinol. The M700HW can be connected directly to the Control Module (M700C) or to a Control/Feeder setup (M700C + M700F) for automated material processing/cutting.

Some of the materials that the M700HW can be utilized for are Nitinol wire or Niti wire, fine carbon steel wire, Titanium wire, and Stainless Steel wire or cable. It can also be used for Piano wire, Surgical drive wire, Fine hard wire, and Stainless Steel micro wire or cable. The M700HW makes easy work of cutting hard material.

Specifications

Programming of the unit is simple. A Job feature allows all variables for frequently run jobs to be pre-programmed. Up to 100 jobs may be programmed. A batching feature allows for multiple pieces of different lengths to be cut within a job. Up to 20 batches per job can be programmed. Easily programmed through the controller or with PC software.

The M700 Modular Series from Eraser is a brand new, scalable concept in wire and tube processing. Unlike traditional methods that require separate systems for cutting different materials and gauges, the Modular Series offers the flexibility to quickly and easily switch between a variety of cutting modules based on your changing needs. The brain of the series is the M700C Control Module, which powers the operations of the feeder and cutting components. Using auto-sensing technology, it readily recognizes which modules you have connected. You can use the control module in either a manual configuration or with Eraser's proprietary software, which automates job management features for up to a hundred programmable jobs. With the module's easy-to-read keyboard and digital display, setting your preferred batching, feed rates and cut rates is simple. Pair the control module with the M700F Feeder Module to handle large processing jobs with ease. Simply connect the two with your choice of cutting module, to automate jobs with precise, repeatable cut lengths.

Featuring 10 variable feed rates, the module allows you to dial in the perfect speed based on the material being cut and the accuracy required. The Feeder Module can also be used independently or with a compatible system of your own. And no job is too small, for those projects that don't require automation or a feeder, an optional foot pedal and length stop can be paired directly with each of the available cutting modules. When it comes to cutting power, the M700TW Tube and Wire Module offers the flexibility to process a range of materials. With a pneumatic powered guillotine-style cutter, it ensures precise and consistent cuts for tubing and sleeving up to three eighths inch outer diameter, or copper wire up to 10 AWG stranded and 12 AWG solid. The M700ST Small Tube Module, on the other hand, features a rotary style cutting head that is perfect for processing flexible tubing to exact specifications.

Use it to cut tubing up to one half inch outer diameter, including materials like flexible polyurethane, flexible PVC, rubber hose, nylon reinforced rubber hose, and more. The M700LT Large Tube Module also has a rotary-style cutting head for processing a variety of materials. Every bit as accurate as its small tube counterpart, it can cut tubing ranging from one half inch, to one and one eighths inch outer diameter. Featuring big versatility in a compact, tabletop design, the M700 Modular Series is made to grow with your tubing and wire processing needs. Swapping out modules takes just seconds, so no matter what you need for the job at hand, you can get right to work. To learn more, contact an Eraser representative at 1-315-454-3237.


Specifications

Material SizeMin. 0.010" (0.25mm) OD
Max. 0.055" (1.40mm) OD
Max Cut Length99,999" (99,999cm)
Min Cut Length0.250" (0.635cm)
M700F Length Tolerances* (repeatability)Under 2" (5.08cm): ± 0.010" (± 0.025cm)
Over 2" (5.08cm): ± 1%
Squareness of Cut: ± 2°
JobsUp to 100 programmable jobs
Batches1 to 20 Batches per Job
Module Size16”L x 7.25”W x 8”H
(406.4mm x 184.2mm x 203.2mm)
Weight21 lbs (9.5 kg)
BushingsMaterial sample is required to size bushing.
This module must be used with the M700C Controller
* Specification is material dependent and/or dependent on de-reeling system


Linear Speed M700F | Feeder
Feed Rate #inches/sec.cm/sec.
04.311
18.722.1
21333.1
317.444.2
421.755.2
526.166.3
630.477.3
734.888.3
839.199.4
941.3104.9

Watch Video
