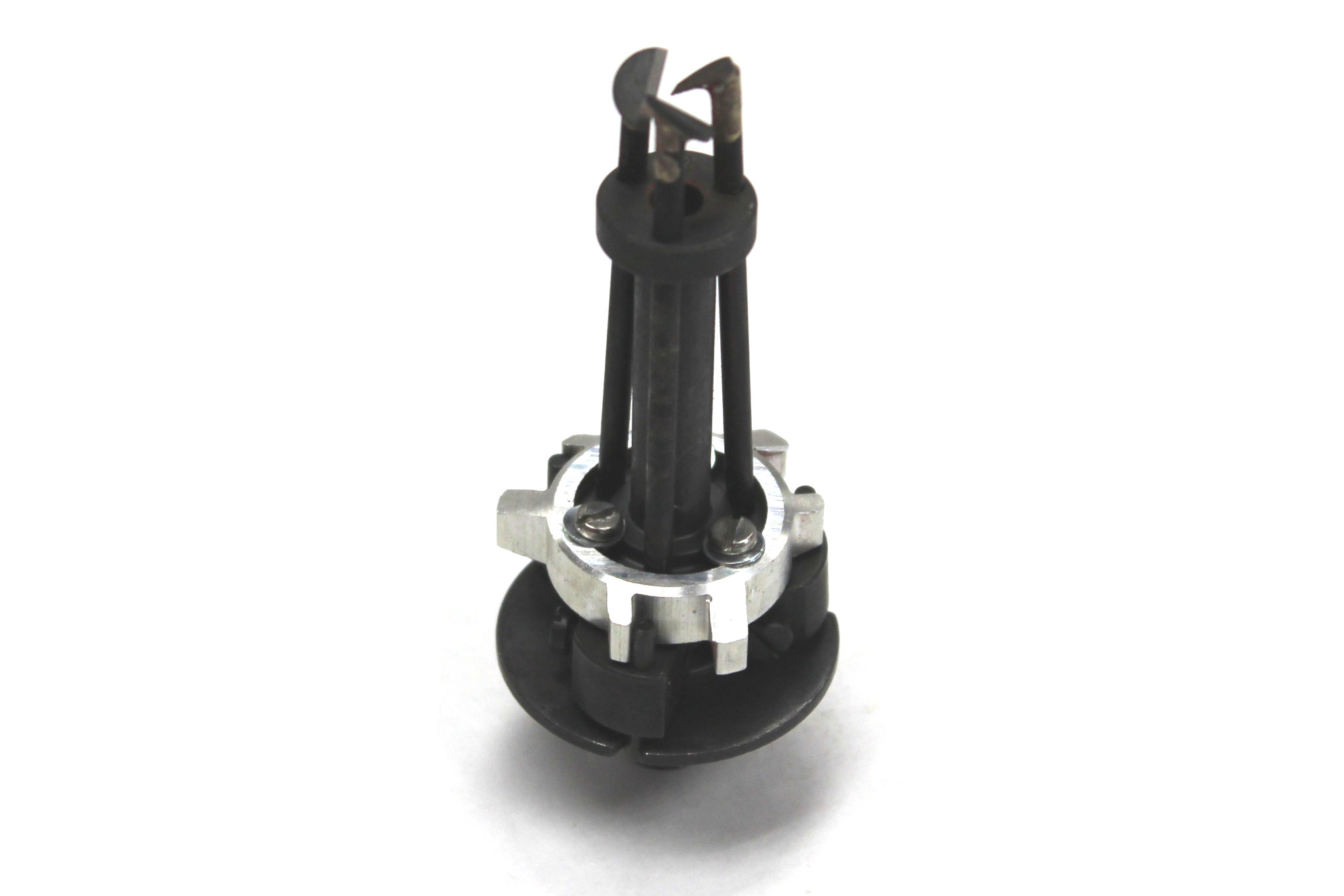

DCFX5 Stripping Head

Description / Details

Replacement stripping head for DCFX5 (Replaces IR4430 head and IR4460 replacement blades)

Item Details

Part Number: IR4050

DCF Blade & Head Replacement Information

This item replaces the Blades (IR4460) and Head (IR4430) for the DCF4 (AR4401/AR4400)

Note: DCF Blade/Head replacements are not always direct replacements. The new DCFX Series have less overlap in wire size capabilities. See the Technical tab to determine the correct replacement(s) for your application.

Specifications

	Old Model & Range	New Model & Range
DCF1 → DCFX1	35 to 15 AWG (0.14 to 1.45 mmø) IR4440 (Blades) IR4410 (Stripping Head)	34 to 23 AWG (0.16 to 0.57 mmø) IR4010 (Stripping Head)
DCF2/3 → DCFX3	32 to 12 AWG (0.20 to 2.06 mmø) IR4450 (Blades) IR4420 (Stripping Head)	25 to 14 AWG (0.45 to 1.63 mmø) IR4030 (Stripping Head)
DCF4 → DCFX5	20 to 6 AWG (0.81 to 4.11 mmø) IR4460 (Blades) IR4430 (Stripping Head)	16 to 6 AWG (1.29 to 4.12 mmø) IR4050 (Stripping Head)
