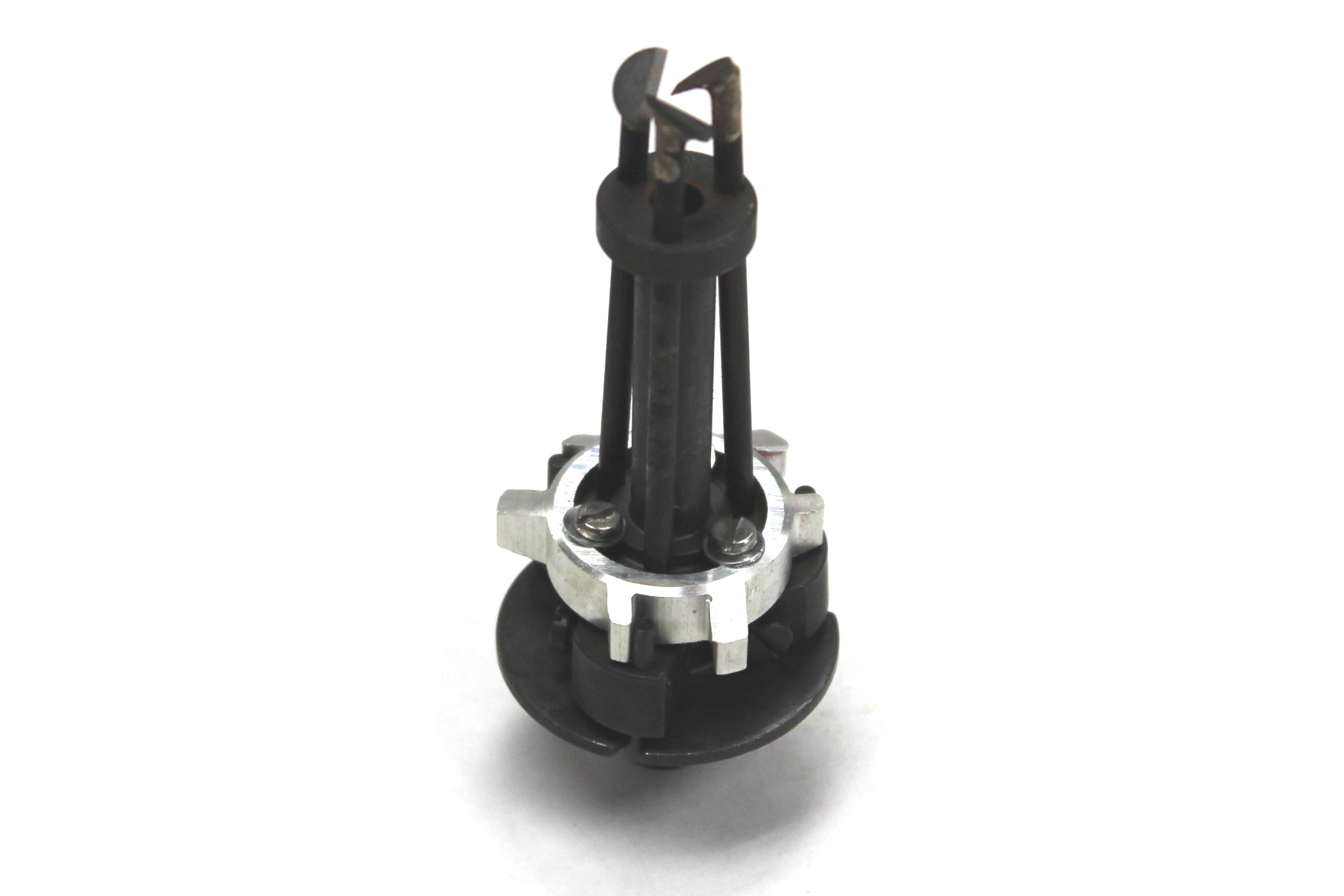

DCFX3 Stripping Head

Description / Details

Replacement stripping head for DCFX3

Item Details

Part Number: IR4030

DCF Blade & Head Replacement Information

This item replaces the Blades (IR4450) and Head (IR4420) for the DCF2/3 (AR4301/AR4300)

Note: DCF Blade/Head replacements are not always direct replacements. The new DCFX Series have less overlap in wire size capabilities. See the Technical tab to determine the correct replacement(s) for your application.

Specifications

	Old Model & Range	New Model & Range
DCF1 → DCFX1	35 to 15 AWG (0.14 to 1.45 mmø) IR4440 (Blades) IR4410 (Stripping Head)	34 to 23 AWG (0.16 to 0.57 mmø) IR4010 (Stripping Head)
DCF2/3 → DCFX3	32 to 12 AWG (0.20 to 2.06 mmø) IR4450 (Blades) IR4420 (Stripping Head)	25 to 14 AWG (0.45 to 1.63 mmø) IR4030 (Stripping Head)
DCF4 → DCFX5	20 to 6 AWG (0.81 to 4.11 mmø) IR4460 (Blades) IR4430 (Stripping Head)	16 to 6 AWG (1.29 to 4.12 mmø) IR4050 (Stripping Head)
