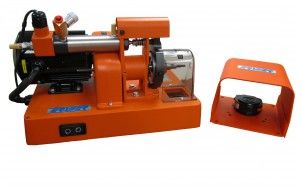

K8A Rotary Blade Stripper

Model
K8A

Part Number
AR1641

SHARE THIS ON SOCIAL MEDIA

Description / Details

Eraser’s K8 Series Rotary Blade Wire Strippers are precision rotary wire strippers capable of processing round, extruded, built-up (solid and stranded), magnet, enamel, film insulated wires and coaxial cables. The units can remove tough insulations such as Kapton, silicon rubber and armored polythermaleze. Blade depth, blade pressure and strip length are all adjustable. Close-up stripping to work pieces, coil bodies and bobbins is possible, as the blade tips are located directly behind the see through guard. By removing the strip length stop, window stripping on magnet wire is also possible. Model K8A Rotary Blade Wire Stripper uses an electro-pneumatic actuating system.

Specifications

Wire Size of Extruded Wires and Built-Up Insulations38 AWG-8 AWG (0.10-3.25mmø) or up to 3/8" OD (9.5mmø)
Wire Size of Film Insulated and Magnet Wires28 AWG-11 AWG (0.33-2.31mmø)
Strip Lengths of Extruded Wires and Built-Up Insulations0 to 1 3/8" (0-34mm)
Strip Lengths of Film Insulated and Magnet Wires0 to 1 3/8" (0-34mm) Infinite strip lengths possible if length stop is removed
PowerAir operated 120V 60Hz 90PSI

Operating/Safety Manual

K8A Wire Stripper

Technical Information Center Articles

Watch Video


E.C.P. (Eraser Certification Program)

We recommend using E.C.P. to determine which Eraser machine is best for your specific application. Click here to download a printable E.C.P. form. For more information about E.C.P. from Eraser, click here.
