Wire and Cable Strippers

Automatic Wire Strippers & Cable Stripping Machines

Whether you’re working with coaxial, extruded, or magnet/enamel wire or cable, Eraser offers a wide range of stripper machine options. Remove the insulation from virtually all magnet and enamel wires of all sizes and insulation types, including Teflon. To check which of our wire strippers (by machine model number) will suite particular wire sizes, view Eraser's Guide to Wire Stripping or contact one of our sales engineers.

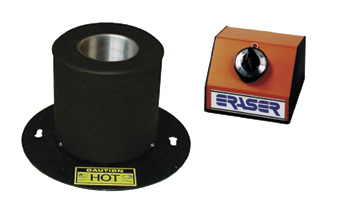

Chemical Wire Strippers DSP1

Eraser Dip Strip Chemical Pots can remove the insulation from virtually all magnet and enamel wires of all sizes and insulation types, including litz wire without damage to the wire. Remove oxidation and residue with the dip clean 2. Dip Strip does not corrode conductors as will acid strippers.View Chemical Wire Strippers

Thermal Wire Strippers HTS1F

Available in a lightweight hand held model or a bench model, thermal wire strippers are perfect for stripping solid and stranded wires up to 1/2" OD. The HTS Series is especially effective on insulation such as P.T.F.E. and Teflon. The temperature at the stripping elements is variable up to 1400°F The bench model can be used for window stripping. View Thermal Wire Strippers

Fiberglass & Wire Wheel Strippers RT2S

Fiberglass wheels will strip many film type insulations. The conical wheels rotate at high speed to generate frictional heat which softens the insulation on the wire. The “nap” of the brush wipes this insulation away. Many of the machines work for square, rectangular, or flat magnet or enamel wire insulations including glass, varnish, epoxy and polythermaleze.View Wheel Strippers

Blade Strippers C300

Eraser blade strippers are great for round magnet and enamel wires with any type of film insulation, from solid and stranded wires and round cable and coax. Rotary strippers are the perfect machine if you need to cleanly remove insulation with no damage to the wire conductor.View Blade Strippers

All Wire and Cable Strippers

LSA20 Cable Stripper

270.jpg Part Number: AR6800
The LS series wire and cable strippers are precision wire and cable strippers. Blades are available to cover most applications and all are manufactured to exacting standards to provide a clean strip. Custom stripping blades can be manufactured for specific applications. Blades are quickly changed or adjusted. An adjustable strip length stop ensures consistent strip lengths. The LSA20 is an air-operated versions of the LS series wire and cable strippers. Model LSA20 incorporates standard serrated cable clamps. Select stripping blades as required.

CS800 Wire Cut & Strip 120V

1226.jpg Part Number: AR7201
Eraser’s Model CS800 Wire Cut & Strip is a fully programmable, fully electric bench top wire cutter and stripper. The unit can process wire from 10AWG – 30AWG and can quickly and precisely cut and partial strip 6,150 pieces per hour at 2.5” lengths (6.35 cmø), and 5,700 pieces per hour at 4’’ lengths (10.2 cmø). With programmable batching and ten variable feed rates, the CS800 is the perfect production tool for complete automation.

C300 Triple Head Wire Stripper

279.jpg Part Number: AR9501
Designed for production, the Model C300 Twin Blade Rotary Wire Stripper and Twister will strip insulations from solid and stranded wires. The unit is capable of processing Teflon, P.T.F.E., PVC, nylon, rubber, KEL-F, miniature coax, coaxial cables,shielded wires and cables. The slug may be left on the wire and removed later when terminated. The stripping head incorporates a pair of accurately adjustable tungsten carbide stripping blades. The blades are easily adjusted and remain on center.

HBS1 Die Blade Wire Stripper

328.jpg Part Number: DE0007
This precision wire stripper is for wires insulated with problematic material. It is extraordinarily well suited for removing insulation from PMMA waveguides with PH sheath. The pliers are made of fiberglass reinforced polyamide with exchangeable blade.The HBS1 is suitable for wires with insulation of PVC, rubber, THHN, silicone, TPE, and THWN. It is applicable for use in the telecommunications, electrical and motor industries.

JCS Cable Stripper

1629.jpg Part Number: DE0035
A cable stripper with a unique adjustable depth swivel blade which cuts insulation on large cables both longitudinally and circumferentially, enabling insulation to be peeled off easily even for cables where insulation is molded tightly on conductors.

1256 Coaxial Cable Stripper (Drilled Through)

521.jpg Part Number: RC1068
Eraser’s Model 1256 Stripper is a bench model stripper that can be used to strip coaxial cables, including semi-rigid, heliax, plenum and RGU. Powered by an AC motor with a drilled out armature and foot switch activated, Model 1256 is easy and safe to use.

1256 Coaxial Cable Stripper

521.jpg Part Number: RC1071
The Model 1256 Stripper is a bench model stripper that can be used to strip coaxial cables, including semi-rigid, heliax, plenum and RGU. Powered by an AC motor and foot switch activated, the Model 1256 is easy and safe to use.

824 Portable Coaxial Cable Stripper

8241-e1347281163927.jpg Part Number: RC2000
Note: Unit comes with carrying case, charger and adapter cord. Designed for portability and weighing only two pounds (910 grams), the Model 824 Portable Coaxial Cable Stripper is battery operated and can be used to strip coaxial cables, including RGU, semi-rigid, plenum, heliax and more. The 824 can also process semi-rigid cable up to.141 inches OD (3.5mmø) easily. The standard battery pack provides approximately two hundred strips per charge. Note: Unit comes with carrying case, charger and adapter cord.
