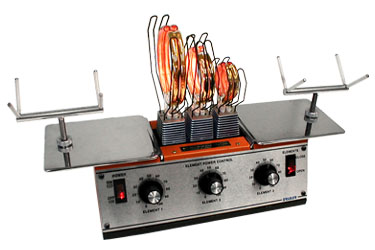

Triple Element Bench Glo-Ring® Heat Tool

Description / Details

Ideal for many applications including heat shrinking, plastic tube bending, soldering, adhesive curing, solder preforms, butt welding, etc. Glo-Rings incorporate quartz encapsulated heating elements which open and close to encircle work pieces with instant radiant heat at temperatures up to 1500°F (815°C). No R.F. interference is generated with the Glo-Rings and they are suitable for use in clean rooms and testing areas. The Glo-Ring is an excellent alternative to heat guns. It uses less electrical energy, does not blow hot air, and is simple to maintain. The triple element bench model has solid state heat controls for shrinking long lengths of heat shrink tubing and other applications. Heating elements open and close around the workpiece either by a switch or by activating the optional electrical foot switch. Adjustable work piece rests keep the work piece central within the heating elements. One, two, or all three element holders may be utilized at any time, and all four element sizes are interchangeable in the holders. Note: Guards & elements sold separate.

Item Details

Part Number: AH2711

Series Information

Glo-Ring infrared heat tools from the Eraser company are ideal for many applications, including heat shrinking, plastic tube bending, soldering, adhesive curing, and more. Glo-Rings use quartz encapsulated heating elements, which open and close to encircle work pieces with instant radiant heat, at temperatures up to 1500°F.

Models LH115 and LH100 are handheld Glo-Rings. These portable heat tools can be easily moved around work pieces or the units may be used stationary on the provided bench stand. The LH115 comes with a heat control, which provides varying element temperatures. The LH100 will heat up to the maximum temperature when activated.

Glo-Ring elements come in a variety of sizes and are measured based on the diameter when closed. Sizes include one-half inch, one inch, two inches and three inches and all four sizes are interchangeable in the holders. Most element sizes are available in intermittent and continuous rated duty cycles. Elements are protected by wire guards for safety and to prevent accidental damage.

Glo-Rings are an excellent alternative to heat guns. They use less electrical energy and are virtually silent and are easy to maintain. There is also no blowing of hot air, making them suitable for use in cleanrooms and testing areas. Also available are Eraser’s single element bench Glo-Ring and triple element bench Glo-Ring.

For more information about Eraser’s wide range of wire processing equipment, contact your sales rep today.
